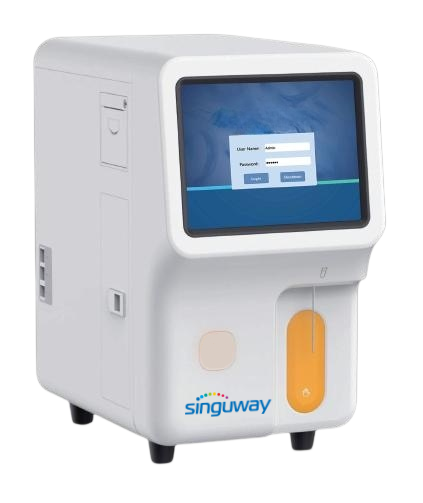

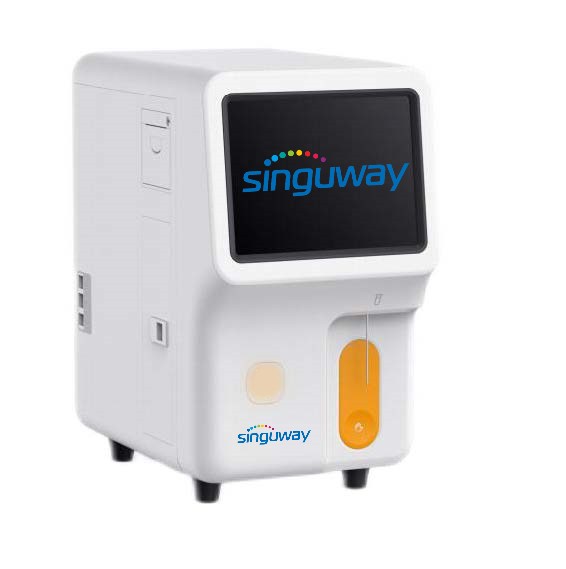

Singuway SGC3000, adopts classical electrical impedance measurement technology and cyanide-free HGB measurement technology, with advanced detailed flag information provides warning in case of abnormal cell results. Original high quality barcoded reagents, calibrators and controls maintain integrity of your test results. The compact user friendly system facilitates efficient analysis to fulfill your clinical needs.

EASY TO USE

• One-click testing, one-click troubleshooting
• One minute waiting for the result
• User friendly interface makes for ease of use
• Original cyanide free reagents ensure safe, biohazard free operation

ECONOMICAL

• Low sampling volume: 9ul whole blood per test
• Auto cleaning system minimizes maintenance requirement

HIGH RELIABILITY AND ACCURACY

• Reliable hardware and long-life accessories
• Comprehensive QC programs
• Fully automatic calibration

CUSTOMIZED SOFTWARE DESIGN

Huge storage of 50000 patient results with histograms

Convenient patient data review modes

• CBC + 3-DIFF, 21 Parameters + 3 Histograms (RBC, WBC and PLT)
• Throughput: up to 60 samples per hour
• 10.4 inch TFT touch screen
• Only 2 operational reagents and probe cleaner needed
• Large storage capacity up to 50,000 samples
• Only 9µL sample volume ideal for pediatrics

Principles

Electrical impedance for WBC, RBC and PLT counting

Sample mode

Whole blood, Capillary whole blood mode, Prediluted mode

Throughput

Up to 60 samples per hour

Display

10.4 inch Color touch screen

Date Storage Capacity

Up to 50,000 including numeric & graphical information

Communication

LAN port supports HL7 protocol

Interface

4 pcs USB ports, 1 pc Ethernet port

Support LIS connection

Support printers, keyboard, mouse, barcode scanner

Printout

Built-in thermal printer or external printer

Operating Environment

Temperature: 15°C~30°C

Humidity: 20%~ 85%

Air pressure：70 kPa~106 kPa

Machine Dimension and Weight

width(430 mm) x height(455 mm)x Depth(275 mm)

Weight: 20kg
